Brite Tank for Carbonation, Conditioning and Packaging

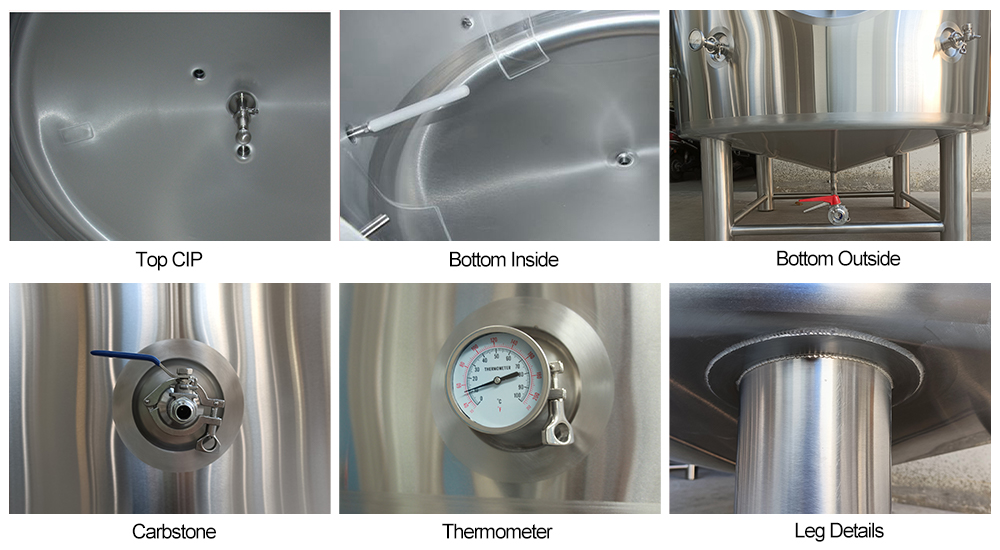

Direct answer: XG Brite tanks are available from 1 BBL to large insulated outdoor vessels. Published catalog construction includes 3 mm 304 stainless steel for the inner shell, 2 mm 304 for the outer shell, sanitary polished surfaces, a pickled and passivated interior, #4 brushed exterior, dished top and bottom, average 15% headspace, carbonation port, dimple cooling jacket, polyurethane insulation, CIP arm and spray ball, and sanitary tri-clamp connections.

Prepared by: XG Machinery Technical Team
Last technical review: 27 October 2026
Scope note: Published specifications describe current catalog configurations. Final capacity, pressure, utilities, controls, documentation and conformity requirements are confirmed in the project quotation.

Available project options

Confirm whether the vessel will be used for conditioning, carbonation, packaging or serving. Working pressure, fittings, stone arrangement, cooling, level indication, access, supports, testing and documentation are selected for the operating plan.

What to confirm before quotation

Send the required working volume, packaging schedule, carbonation method, cellar conditions, pressure requirement and destination.

Technical sources and review basis

• XG Machinery current product catalog and project-specific data sheets.

• Established process guidance used as technical context rather than as an XG performance claim.

• Project requirements and local standards confirmed during technical review.

Request a project review: Email sales@xgmachinery.com with the project information.
